2-1a: Mahony Estimated rotation angle over time (radians)In this project, we will be implementing three different orientation algorithms to estimate the orientation of a phone over time. A naïve gyroscope integration (dead reckoning) algorithm is used in Question 1 and Question 4a. The Mahony filter is used in Questions 2 and 3, and serves as the baseline for comparison in Question 4. Finally, the TRIAD method is introduced in Question 4b and compared against the other methods in Questions 4c and 4d.
The framework of this codebase allows for the easy creation of
different filters termed “estimators”. In filters.py there
is an abstract class called Estimator which can be extended
to implement various filters and estimators. Because of the code
structure, we decided to make some of our own filters as well, so there
are 5 implementations: - Naïve Estimator (required) - Mahony Filter
(required) - TRIAD (Tri-Axial Attitude Determination) Estimator
(required) - Mahony with TRIAD filter (Caleb’s idea) - Hybrid
Mahony-TRIAD filter (Charles’ idea)
These subclasses of Estimator are then initialized and
passed into the simulate_and_visualize_data method in
visualizer. This project structure allows for the rapid
creation and iteration of different filters. Additionally 3D
visualization techniques along with 2D plots were used extensively in
the debugging process.
The naïve gyroscope integration algorithm estimates orientation by directly integrating the angular velocity over time. It assumes that the gyroscope data is accurate and doesn’t include any corrections from other sensors. This method is simple and fast but suffers from drift over time, especially if there’s any bias or noise in the gyroscope. It works well in the short term but quickly becomes inaccurate during longer or more complex motion.
The Mahony filter is a nonlinear complementary filter that combines gyroscope integration with landmark innovation using accelerometer and magnetometer data. It corrects drift and stabilizes orientation over time by aligning the estimated orientation with gravity (from the accelerometer) and magnetic north (from the magnetometer). It also dynamically estimates gyroscope bias. This makes the Mahony filter more reliable than dead reckoning, especially for longer durations or when precise orientation is important. It was observed during testing and debugging that the Mahony filter performs well when things are moving rapidly but suffers from drift and compounding error when things are still.
The TRIAD (Tri-Axial Attitude Determination) method estimates orientation using two reference vectors: gravity and magnetic north. It constructs two orthonormal frames — one from known inertial vectors and one from measured body-frame vectors — and computes the rotation matrix that aligns them. Unlike the other two methods, TRIAD is algebraic and doesn’t rely on time integration, which means it gives an immediate estimate of orientation at each time step, but doesn’t track changes over time or handle gyroscope data.
One of the main shortcomings (yet at the same time, its appeal) of
the pure TRIAD method is its non-time dependence. That is, if you just
provide the data at a single instant in time, TRIAD can provide you the
rotation matrix. However this causes the estimator to be jumpy, and skip
all around when that is obviously not how real motion works. Caleb’s
filter attempts to solve this problem by using many aspects of the
Mahony filter, with one key difference. The final result has the same
magnetic correction, quaternion update, and estimation of gravity and
north vectors as the Mahony Filter, but the innovation term
omega_mes is calculated uniquely.
omega_mes is calculated as follows A rotation matrix is
created using the TRIAD function. We can use this matrix to write an
equation:
\[\hat{R} = AR_{Tr}\]
Where \(\hat{R}\) is our current estimate of the rotation matrix, \(R_{Tr}\) is the rotation matrix derived directly from data using the TRIAD method, and \(A\) is an unknown rotation matrix relating the two. Solving this we get: \[A = \hat{R}R_{Tr}^T\]
This rotation matrix \(A\) can be thought of as the rotation from where TRIAD says we are to where all our previous estimations (a combination of TRIAD and Mahony stuff) says we are. Then we can turn this rotation \(A\) into a angular velocity by representing it as an axis-angle and computing \(\theta\hat{k}\). This innovation term is then multiplied by a gain and subtracted from the gyroscope data yielding: \[\omega_{mes}=\omega_{y} - k_{p}(\theta\hat{k})\]
This \(\omega_{mes}\) is used just like it is in the Mahony filter. This filter succeeds at removing the jerkiness of the pure TRIAD estimator and shines where TRIAD is best, not drifting and remaining accurate for long periods of time. However it falls short when things start moving fast.
Charles’ filter is a variant of Caleb’s filter and combines the Mahony and Mahony-TRIAD filters into a hybrid. The goal is to use the best filter for the task at hand. TRIAD is used then things are relatively still and Mahony when there is movement. This is accomplished by computing the magnitude of the angular velocity data and comparing it to a predefined threshold like .1. If the value is greater than that, a plain Mahony filter is used but if its lower then the Modified Mahony Filter is used, utilizing the TRIAD method to compute the innovation as described above. This has good results and works as intended.
In question 1 we implement a naïve gyroscope integration in order to estimate orientation with a set of given inputs. These inputs simulate perfect gyroscope data with no bias or drift.
The given inputs can be represented by various rotation matrixes.
If we multiply all these rotation matrices we can see our expected result:
\(R_{x,\frac{\pi}{4}} R_{z,\frac{\pi}{4}} R_{x,-\frac{\pi}{4}} R_{z,-\frac{\pi}{4}} = \begin{bmatrix} 0.8536 & 0.1464 & -0.5000 \\ -0.2500 & 0.9571 & -0.1464 \\ 0.4571 & 0.2500 & 0.8536 \end{bmatrix}\)
Which corresponds with this quaternion:
\(q_{final}=0.9571 < 0.1036, -0.2500, -0.1036 >\)
\(q(1)=0.9571 < 0.1036, -0.2500, -0.1036 >\)
We simulated this rotation over time and obtained the exact same
final orientation as expected from the matrix multiplication. This
verifies that our implementation of quaternion integration is correct.
You can see a visualization of this rotation in Fig. 1.1 in the fig file
under fig\Fig 1-1.mp4.
No, it does not hold that \(q(0) = q(1)\). We can see from our results that:
\(q(0)=1 < 0, 0, 0 >\)
\(q(1)=0.9571 < 0.1036, -0.2500, -0.1036 >\)
This also makes conceptual sense because rotations in 3D space are not commutative.
In question 2 we implement a Mahony filter to estimate a phone’s orientation over time with a given csv file containing gyroscope, accelerometer, and magnetometer data over time. The motion consists of a phone that is still for a few seconds, and is then picked up and rotated around randomly, but slowly and smoothly, and then set back down.
We tuned out K values to be the following based on trial and error.
\(k_p=1, k_I=.3, k_a=.8, k_m=.2\)
We visualized this motion using MuJoCo that can be seen in
fig\Fig_2-2.mp4
To calculate the rotation angle over time, we convert the estimated orientation quaternion at each time step into an axis-angle representation. We then extract the angle component and plot it with respect to time.
Figures 2-1a and 2-1b below show the rotation angle over time in radians and degrees, respectively. The phone remains still at the beginning, is then slowly rotated in multiple directions, and eventually returns to rest.
Over the course of the motion, the phone rotated a total of approximately 8,572 radians, or 491,165 degrees. This total includes all incremental rotations.
Fig

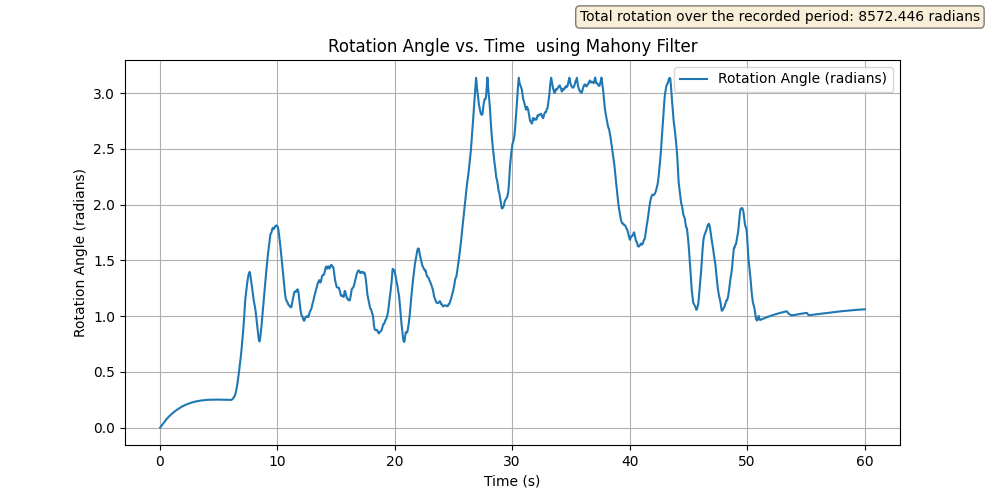

2-1a: Mahony Estimated rotation angle over time (radians)
.png)

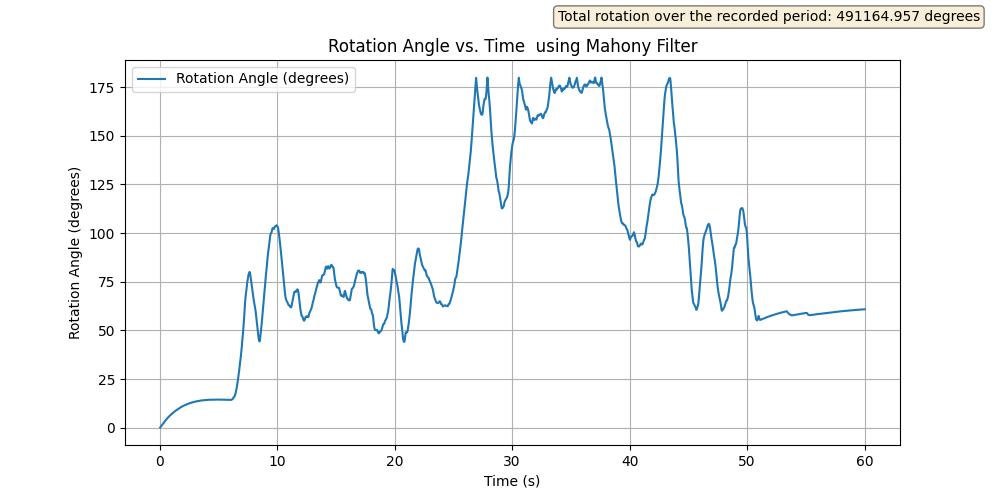

Fig 2-1b: Mahony Estimated rotation angle over time
(degrees)
While working on this project, we noticed several behaviors of the Mahony filter:
When the magnetometer gain \(k_m\) was set too high, the phone’s orientation estimate became overly constrained. Specifically, during large flips, the filter would only allow the phone to rotate about 90 degrees, even when the phone was flipped fully. This prevented full rotations and caused the phone to align too strongly with magnetic north.
The filter showed a tendency to drift toward magnetic north very slowly. For low values of \(k_m\), the phone would gradually oscillate around magnetic north until it converged on the correct orientation. For larger values of \(k_m\), it would snap into place much more quickly. We discovered this when testing with our own data, where the phone was sitting still for a full minute, and we observed the filter slowly orienting it correctly over time. This behavior occurs because the initial orientation is assumed to be the identity quaternion, which does not match the phone’s actual orientation. This led us to consider using the TRIAD method to initialize the orientation more accurately before switching to the Mahony filter for continuous updates.
We verified the correctness of the internal orientation estimate using 3D visualization in MuJoCo. By observing the rotated magnetic reference vector \(\hat{v}_m\), we saw that it remained fixed in the spatial (inertial) frame as expected. This confirmed that the estimated orientation was rotating the internal reference vectors correctly.
To further test the filter’s sensitivity, we placed a magnet near the phone. In the 3D visualization, we observed a clear reaction in the filter’s output — the orientation estimate became unstable or skewed. This confirmed that the magnetometer data was being used actively and was susceptible to external magnetic disturbances.
In Question 3, we used the Mahony filter developed in Question 2 to process IMU data collected from our own phone. We extracted gyroscope, accelerometer, and magnetometer data and exported it as a CSV file. The phone was able to sample data at approximately 100 Hz. While each sensor had its own timestamp, the sampling intervals were sufficiently close that we used the accelerometer timestamps as a common reference across all measurements.
We used charlie_phone_540.csv as the input dataset to
the filter. In this dataset, the phone was rotated a total of 540
degrees: first 180° about the phone’s z-axis, then 180° about the
y-axis, and finally 180° about the x-axis. A video showing the filter’s
visualization of this sequence is included in
fig/Fig_3-1.mp4.
We computed the roll, pitch, and yaw angles by converting the estimated orientation quaternion from the Mahony filter into Euler angles. These angles were then plotted with respect to time.

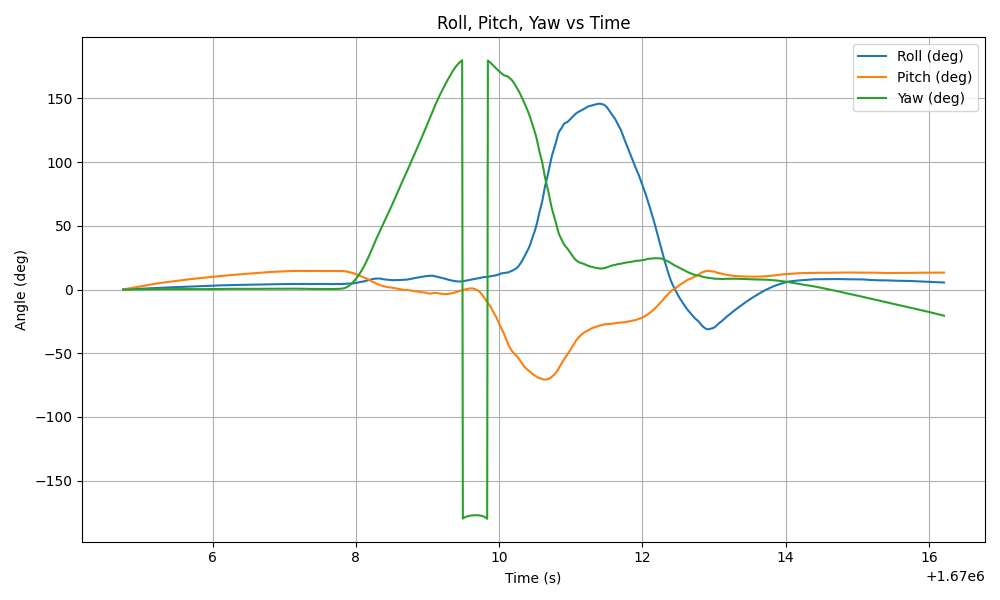

Fig 3-2: Roll,
Pitch, Yaw vs Time
The plot confirms the intended motion sequence. Initially, we observe a rotation about the z-axis (yaw), followed by rotation about the y-axis (pitch), and finally about the x-axis (roll), consistent with the phone’s movement.
To estimate the Mahony filter’s error signal, we used the formula given in Equation (6):
\[ E_{\text{mes}} = 1 - \mathbf{v}_a \cdot \hat{\mathbf{v}}_a + 1 - \mathbf{v}_m \cdot \hat{\mathbf{v}}_m \]
This error metric captures the disagreement between the measured sensor directions and the expected directions from the current orientation estimate.

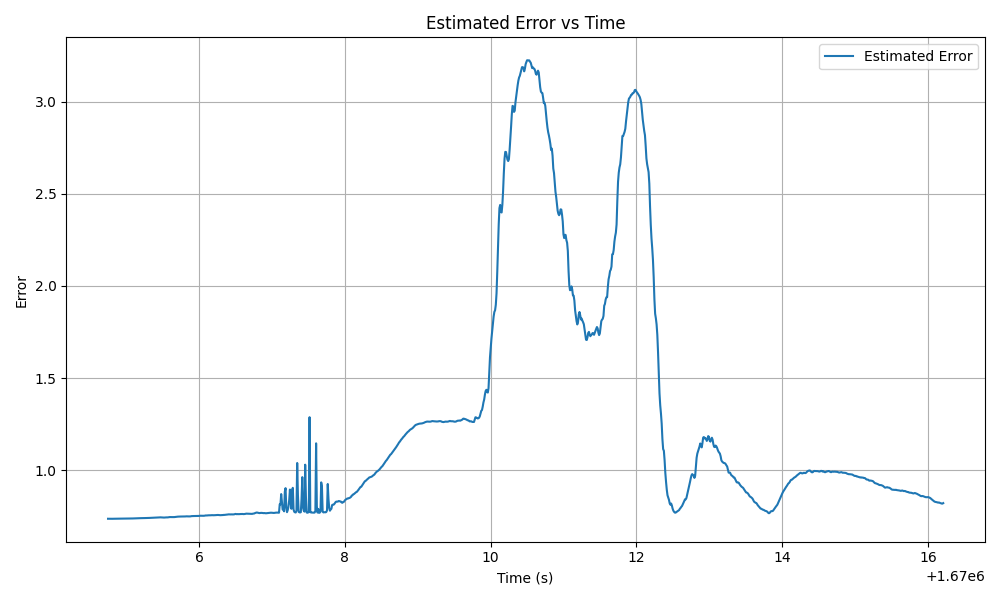

Fig 3-3: Estimated
Error vs Time
The error peaks during periods of rapid motion, as expected. When the phone is still, the orientation estimate converges, and the error reduces.
The Mahony filter also maintains an internal estimate of the gyroscope bias, which is updated over time to account for sensor drift. We recorded and plotted this bias estimate.

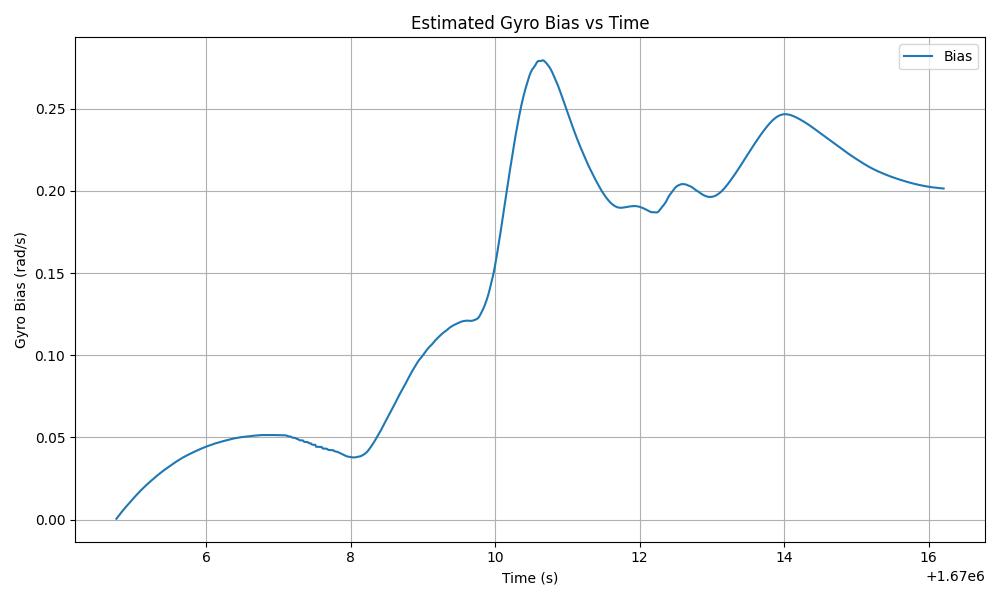

Fig 3-4: Estimated Gyroscope Bias vs Time
The bias estimate increases during motion as expected.
Question 4 focuses on the implementation of the TRIAD and Naïve
estimators. In part A we are asked to implement the Naïve estimator. Its
implementation can be found in filters.py file in the class
NaiveEstimator(Estimator). Its is not very complicated and
simply implements a equation given in the project instructions which I
will repeat for clarity: \[\mathbf{q}_{k+1}=e^{\frac {1} {2}
\Omega(\omega)\delta t}\mathbf{q}_{k}\] It appears to work
moderately well as ### Results
In Question 4, we implemented two additional orientation estimation methods: the naïve gyroscope integration method and the TRIAD (Tri-axial Attitude Determination) method. These estimators were used to compare against the Mahony filter implemented in previous questions. We evaluated their performance on the input data from Question 2 as well as our own phone dataset from Question 3.
We implemented the naïve estimator by integrating the raw gyroscope measurements over time using the same quaternion exponential update technique from Question 1. This method estimates orientation purely based on angular velocity, without any correction for drift or sensor error. It is simple to implement but susceptible to long-term inaccuracy.
The TRIAD method was implemented using the normalized gravity and magnetic field vectors as references, and the corresponding accelerometer and magnetometer readings from the IMU as measurements. At each time step, we constructed a direction cosine matrix from the triads and computed the rotation matrix algebraically. This method does not accumulate error over time, but its accuracy depends heavily on the quality of the accelerometer and magnetometer readings at each moment.
We processed the input file from Question 2 using the naïve gyroscope integration method and computed the rotation angle \(\theta(t)\) at each time step. This angle was extracted from the quaternion’s axis-angle representation and plotted with respect to time.
A video visualization of this method can be seen in
Fig_4-1.mp4.

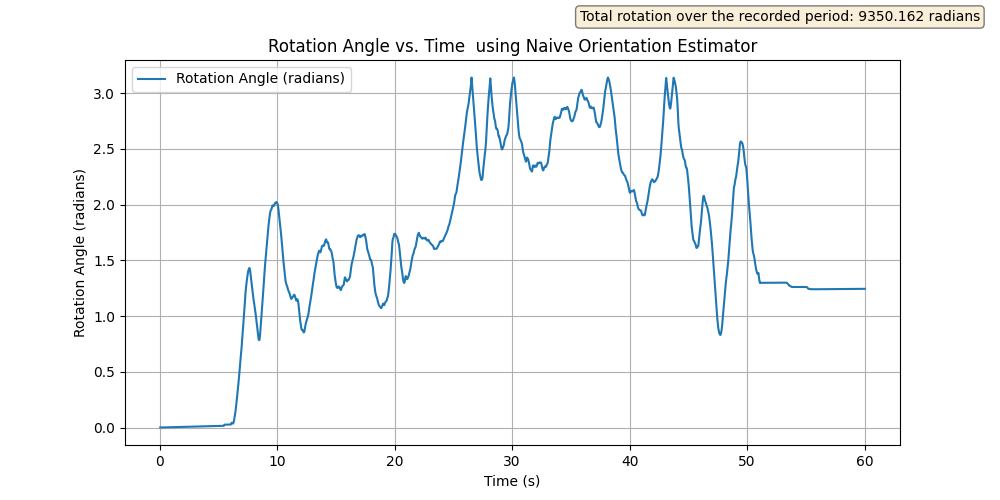

Fig 4-2: Rotation angle over time using the naïve gyroscope
integration method.
The rotation angle increases continuously during motion, as expected, but small integration errors accumulate over time, causing drift. This method performs well in the short term but is not reliable for long-term estimation without correction.
We then processed the same dataset using the TRIAD method and plotted the estimated rotation angle over time.
A video visualization is available in Fig_4-3.mp4.

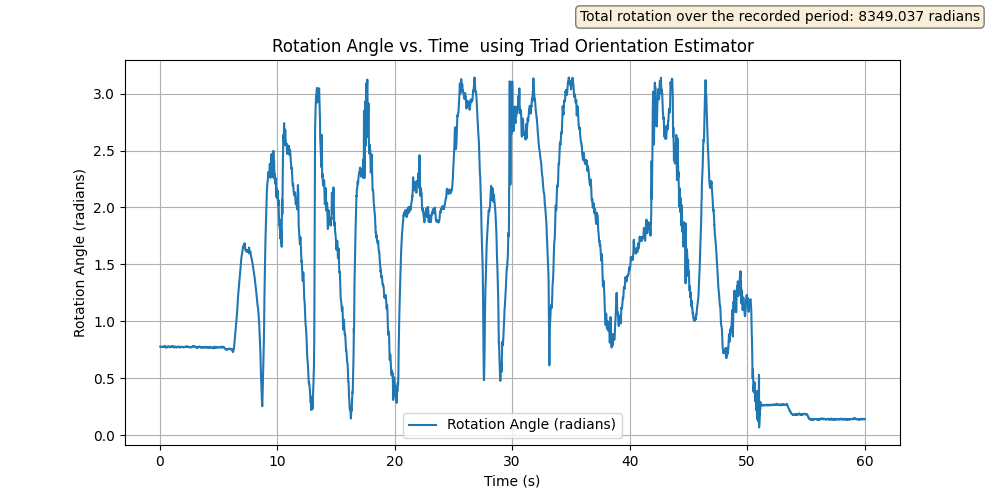

Fig 4-4: Rotation angle over time using the TRIAD method.
The TRIAD estimate tracks the general shape of the motion accurately but is more sensitive to noise in the magnetometer and accelerometer. Sudden spikes or jitter appear in the plot if either sensor experiences interference or measurement error. The method remains stable over time due to the lack of integration drift.
We used the same dataset from Question 3,
charlie_phone_540.csv, as the input for both the naïve
estimator and the TRIAD method. In this dataset, the phone undergoes a
sequence of three 180° rotations: first about the phone’s z-axis (yaw),
then about the y-axis (pitch), and finally about the x-axis (roll).
Below are the roll, pitch, and yaw angles computed from each estimator, as well as the corresponding error estimates using the error formula:
\[ E_{\text{mes}} = 1 - \mathbf{v}_a \cdot \hat{\mathbf{v}}_a + 1 - \mathbf{v}_m \cdot \hat{\mathbf{v}}_m \]

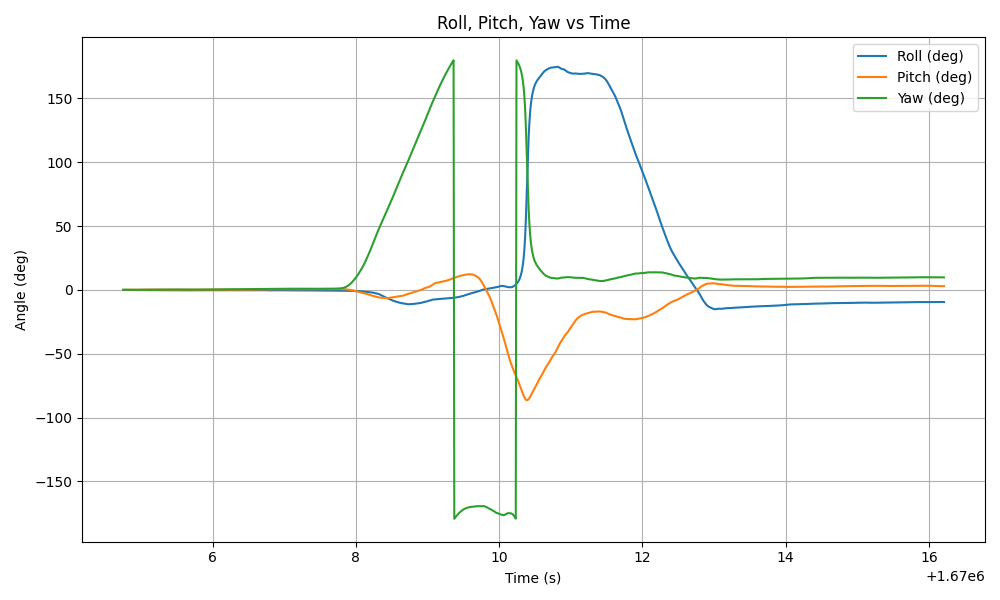

Fig 4-5a: Roll, Pitch, Yaw vs. Time using the naïve
estimator.

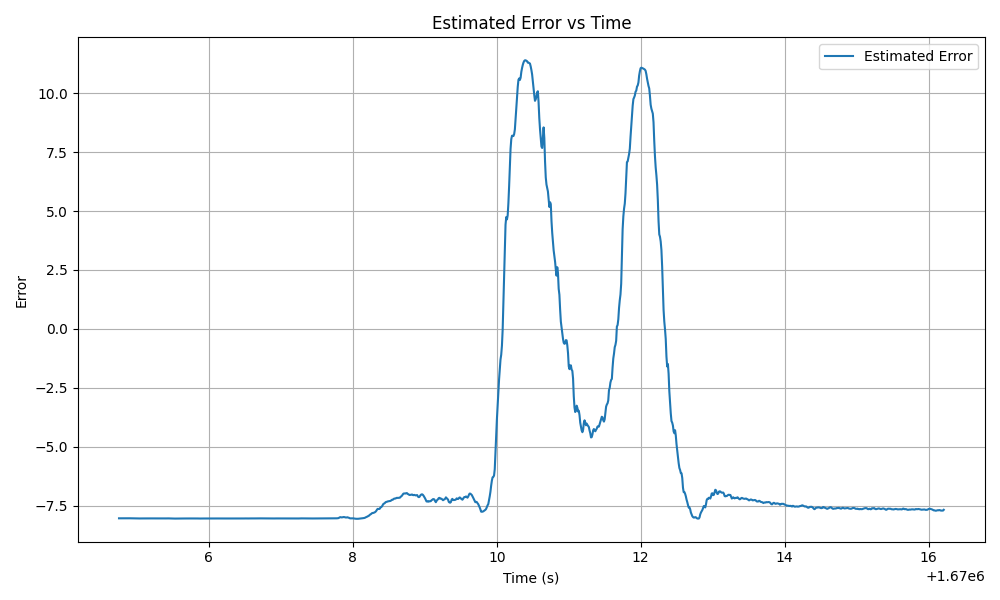

Fig 4-5b: Estimated error vs. time using the naïve
estimator.

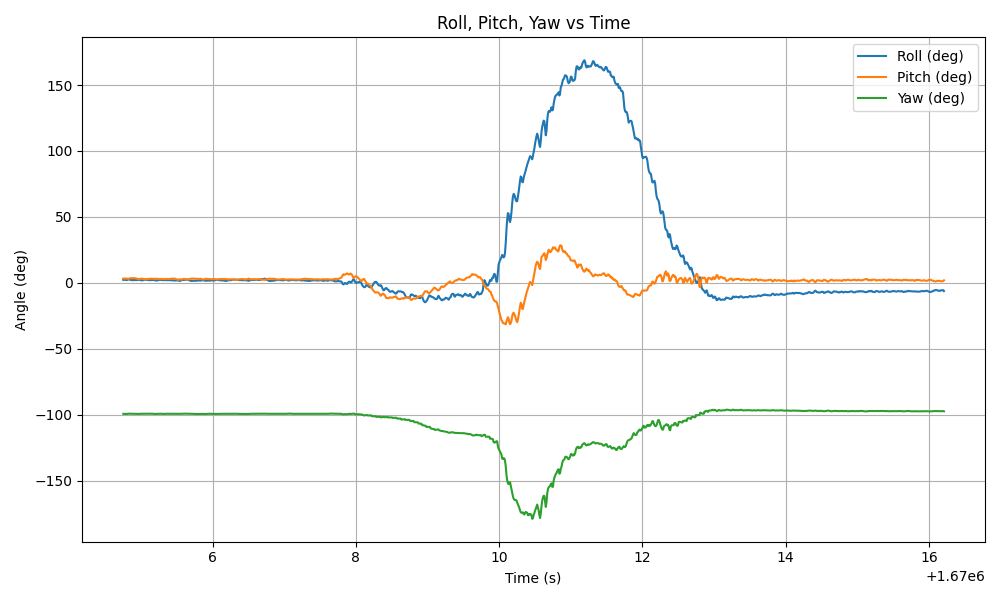

Fig 4-5c: Roll, Pitch, Yaw vs. Time using the TRIAD method.

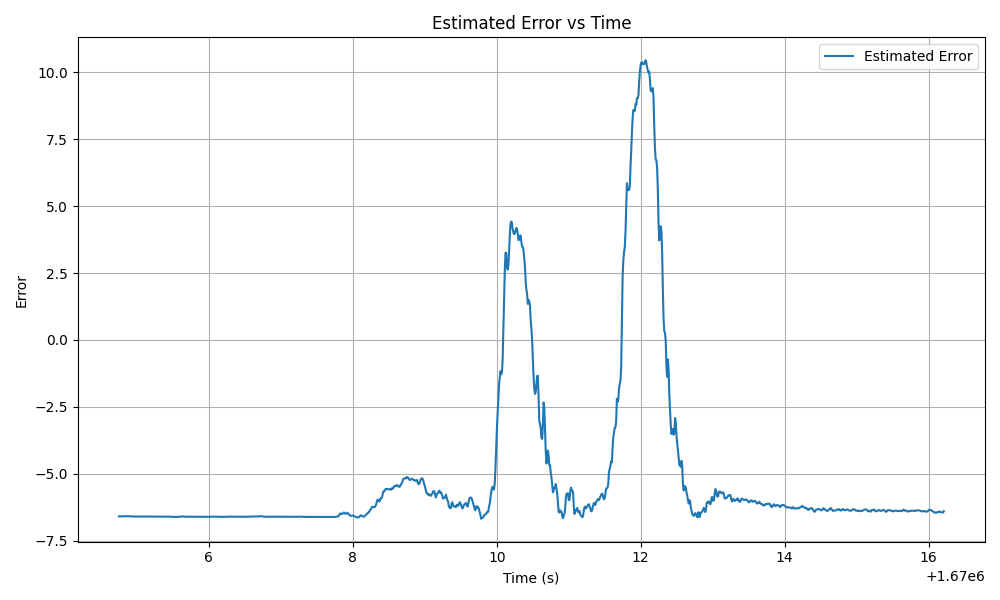

Fig 4-5d: Estimated error vs. time using the TRIAD method.
The naïve method showed clear yaw, pitch, then roll movements as
expected, but the TRIAD filter failed at accurately capturing this
sequential motion. This behavior is clearly visible in the visualization
videos:Fig_4-6a.mp4 for the naïve method and
Fig_4-6b.mp4 for the TRIAD method.
Our mahony filter has problems with drifting when the IMU is still and keeping up with the phone when its flipped around quickly. The TRIAD filter on the other hand works best when nothing is moving. Over long datasets, despite being grounded with the gravity and north vector’s the Mahony filters drift seems to do it a disservice while the TRIAD filter doesn’t suffer from this issue. However when it comes to fast movements, the TRIAD filter almost looks random, it jerks all over and is basically useless. The dataset you provided has a lot of motion in it and the Mahony filter is probably the best for it, but if the phone were in a car on a long road trip, or even a normal drive, the TRIAD filter would probably be the best. The characteristics of the dataset of a phone in a car would be gravity and magnetometer vectors that hardly change but all sorts of small random angular velocities. This would mess up the mahony filter and it would probably be jittery, while the TRIAD filter with its consistent landmarks would likely be more stable. The Charlie filter would likly excel in all these scenarios because in the car, the omega values would be small and thus it always use triad, but maybe if you were really accelerating, or hit a bump etc, it would switch to mahony. But with the provided data, it uses mahony for almost the whole time, but at beginning and end it uses TRIAD. It also sort of grounds the estimate midway for a few time steps during the fast (relatively fast, compared to sitting on the table.) movement when the phone slows down or switches direction.
After writing the prior paragraph, Charles went out in his car and
took some data of normal driving with the phone taped to the dashboard.
He did a bunch of turns and hit a bunch of bumps and ended in the same
place that he started. We then pitted different filters against
eachother in TheOctagon.py. The results: all the
predictions were wrong. The mahony filter beat everything by a long shot
and ended in the same spot. The triad filter just twitched and didn’t
respond to any of the mag data, so it was probably interfered with. The
Naïve filter just Naïvely spun around and got lost.
